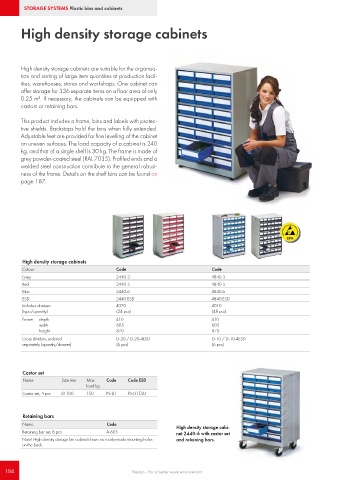

Page 186 - Treston main catalogue 2021

STORAGE SYSTEMS Plastic bins and cabinets

High density storage cabinets

High density storage cabinets are suitable for the organisa-
tion and sorting of large item quantities at production facil-
ities, warehouses, stores and workshops. One cabinet can
offer storage for 336 separate items on a floor area of only
0.25 m². If necessary, the cabinets can be equipped with
castors or retaining bars.

This product includes a frame, bins and labels with protec-
tive shields. Backstops hold the bins when fully extended.
Adjustable feet are provided for fine levelling of the cabinet
on uneven surfaces. The load capacity of a cabinet is 240
kg, and that of a single shelf is 30 kg. The frame is made of
grey powder-coated steel (RAL 7035). Profiled ends and a
welded steel construction contribute to the general robust-
ness of the frame. Details on the shelf bins can be found on
page 187.

High density storage cabinets
Colour Code Code
Grey 2440-3 4840-3
Red 2440-5 4840-5
Blue 2440-6 4840-6
ESD 2440 ESD 4840 ESD
Includes drawers 4020 4010
(type/quantity) (24 pcs) (48 pcs)
Frame depth 410 410
width 605 605
height 870 870
Cross dividers, ordered D-20 / D-20-4ESD D-10 / D-10-4ESD
separately (quantity/drawer) (6 pcs) (6 pcs)

Castor set
Name Size mm Max Code Code ESD
load kg
Castor set, 4 pcs Ø 100 150 PS-LH PS-LH ESD

Retaining bars
Name Code
High density storage cabi-
Retaining bar set, 8 pcs A-605 net 2440-6 with castor set
Note! High density storage bin cabinets have no ready-made mounting holes and retaining bars.
on the back.
