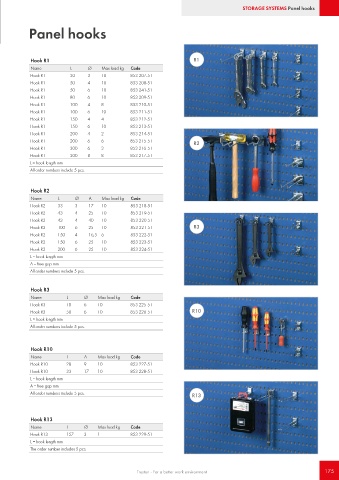

Page 175 - Treston main catalogue 2021

STORAGE SYSTEMS Panel hooks

Panel hooks

Hook R1 R1
Name L Ø Max load kg Code
Hook R1 30 3 10 853 207-51
Hook R1 50 4 10 853 208-51
Hook R1 50 6 10 853 241-51
Hook R1 80 6 10 853 209-51
Hook R1 100 4 8 853 210-51
Hook R1 100 6 10 853 211-51
Hook R1 150 4 4 853 212-51
Hook R1 150 6 10 853 213-51
Hook R1 200 4 2 853 214-51
Hook R1 200 6 6 853 215-51 R2
Hook R1 300 6 3 853 216-51
Hook R1 300 8 8 853 217-51
L = hook length mm
All order numbers include 5 pcs.

Hook R2
Name L Ø A Max load kg Code
Hook R2 33 3 17 10 853 218-51
Hook R2 43 4 25 10 853 219-51
Hook R2 43 4 40 10 853 220-51
Hook R2 100 6 25 10 853 221-51 R3
Hook R2 150 4 16,5 6 853 222-51
Hook R2 150 6 25 10 853 223-51
Hook R2 200 6 25 10 853 224-51
L = hook length mm
A = free gap mm
All order numbers include 5 pcs.

Hook R3
Name L Ø Max load kg Code
Hook R3 10 6 10 853 225-51
Hook R3 50 6 10 853 226-51 R10
L = hook length mm
All order numbers include 5 pcs.

Hook R10
Name L A Max load kg Code
Hook R10 28 9 10 853 227-51
Hook R10 33 17 10 853 228-51
L = hook length mm
A = free gap mm
All order numbers include 5 pcs. R13

Hook R13
Name L Ø Max load kg Code
Hook R13 157 3 1 853 229-51
L = hook length mm
The order number includes 5 pcs.
