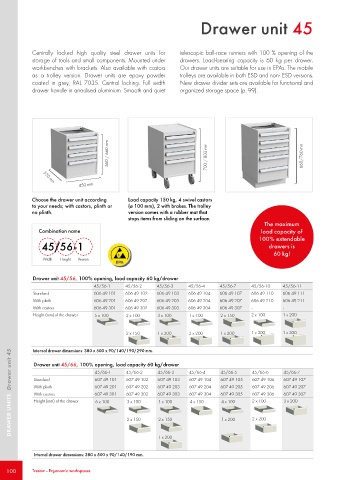

Drawer unit 45

Centrally locked high quality steel drawer units for telescopic ball-race runners with 100 % opening of the
storage of tools and small components. Mounted under drawers. Load-bearing capacity is 60 kg per drawer.
workbenches with brackets. Also available with castors Our drawer units are suitable for use in EPAs. The mobile
as a trolley version. Drawer units are epoxy powder trolleys are available in both ESD and non- ESD versions.
coated in grey, RAL 7035. Central locking. Full width New drawer divider sets are available for functional and
drawer handle in anodised aluminium. Smooth and quiet organized storage space (p. 99).

560 / 660 mm 700 / 800 mm 660/760 mm

520 mm
450 mm
Choose the drawer unit according Load capacity 150 kg, 4 swivel castors
to your needs; with castors, plinth or (ø 100 mm), 2 with brakes. The trolley
no plinth. version comes with a rubber mat that
stops items from sliding on the surface.
The maximum
Combination name load capacity of
100% extendable
45/56-1 drawers is
60 kg!
Width Height Version

Drawer unit 45/56, 100% opening, load capacity 60 kg/drawer
45/56-1 45/56-2 45/56-3 45/56-4 45/56-7 45/56-10 45/56-11
Standard 606 49 101 606 49 102 606 49 103 606 49 104 606 49 107 606 49 110 606 49 111
With plinth 606 49 201 606 49 202 606 49 203 606 49 204 606 49 207 606 49 210 606 49 211
With castors 606 49 301 606 49 302 606 49 303 606 49 304 606 49 307 - -
Height (mm) of the drawer 5 x 100 2 x 100 3 x 100 1 x 100 2 x 150 2 x 100 1 x 200

2 x 150 1 x 200 2 x 200 1 x 200 1 x 300 1 x 300

Internal drawer dimensions: 380 x 500 x 90/140/190/290 mm.
DRAWER UNITS Drawer unit 45 Drawer unit 45/66, 100% opening, load capacity 60 kg/drawer 45/66-4 607 49 305 45/66-6 45/66-7

45/66-2
45/66-3
45/66-5
45/66-1
Standard
607 49 101
607 49 105
607 49 102
607 49 107
607 49 104
607 49 103
607 49 106
607 49 203
607 49 204
607 49 207
607 49 202
607 49 206
607 49 201
With plinth
607 49 205
607 49 304
607 49 306
607 49 307
With castors
607 49 302
607 49 301
607 49 303
Height (mm) of the drawer
3 x 200
2 x 100
6 x 100
4 x 150
1 x 100
4 x 100
3 x 100
2 x 150
2 x 150
1 x 200 1 x 200 2 x 200
Internal drawer dimensions: 380 x 500 x 90/140/190 mm.
