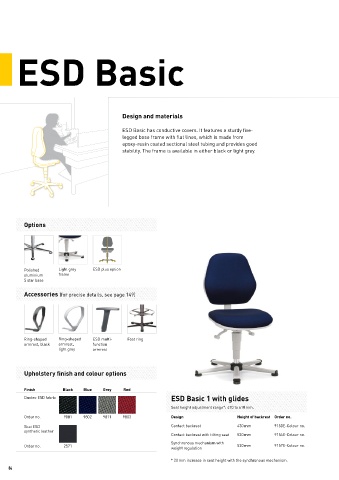

Page 84 - INTERSTUHL BIMOS

ESD Basic ESD

Design and materials Mechanisms and functions (for precise details, see pages 16 – 17)

ESD Basic has conductive covers. It features a sturdy five-
legged base frame with flat lines, which is made from
epoxy-resin coated sectional steel tubing and provides good
stability. The frame is available in either black or light grey.
or or

Contact backrest Contact backrest with seat Synchronous mechanism Seat height adjustment Backrest height
tilt adjustment with weight regulation adjustment

Options

Polished Light grey ESD plus option
aluminium frame
5 star base

Accessories (for precise details, see page 149)

Ring-shaped Ring-shaped ESD multi- Foot ring
armrest, black armrest, function
light grey armrest

Upholstery fi nish and colour options

Finish Black Blue Grey Red
Duotec ESD fabric ESD Basic 1 with glides ESD Basic 2 with castors ESD Basic 3 with glides and step
Seat height adjustment range*: 470 to 610 mm. Seat height adjustment range*: 470 to 610 mm. Seat height adjustment range: 620 to 870 mm (630 to 890 mm* / 660 to 910 mm**).
Order no. 9801 9802 9811 9803 Design Height of backrest Order no. Design Height of backrest Order no. Design Height of backrest Order no.
Skai ESD Contact backrest 430 mm 9150E-Colour no. Contact backrest 430 mm 9151E-Colour no. Contact backrest 430 mm 9152E-Colour no.
synthetic leather
Contact backrest with tilting seat 530 mm 9154E-Colour no. Contact backrest with tilting seat 530 mm 9155E-Colour no. Contact backrest with tilting seat* 530 mm 9156E-Colour no.
Synchronous mechanism with Synchronous mechanism with Synchronous mechanism with
Order no. 2571 weight regulation 530 mm 9157E-Colour no. weight regulation 530 mm 9158E-Colour no. weight regulation** 530 mm 9159E-Colour no.

* 20 mm increase in seat height with the synchronous mechanism. * 20 mm increase in seat height with the synchronous mechanism.
