Page 59 - INTERSTUHL BIMOS

Footrests Production

Support in your everyday work Model 9455 functions

In the case of elevated seating positions, footrests can provide the necessary
support for your legs. They can be used to ensure exactly the right angle between
your thigh and upper body. That is why the EEC directive governing the minimum
health and safety requirements for the workplace specifies the following: “When
seated, the employee’s feet must be in contact with the floor or a footrest”. Bimos
industrial footrests are really easy to adjust for the individual concerned, enable
the user to adopt the correct posture and thereby ensure good thigh circulation.
The non-slip rubber tread provides a firm grip even when the work is physically
demanding. Pedal buttons enable
convenient footrest
adjustment while
seated

Perfect adaptability

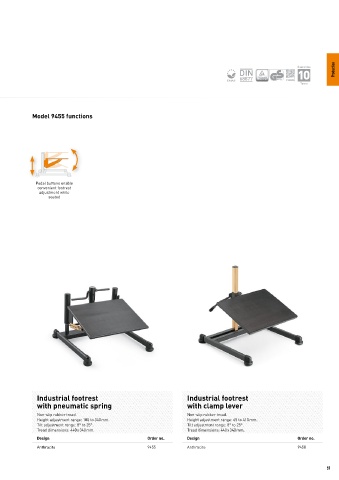

All Bimos footrests feature continuously variable height and Industrial footrest Industrial footrest
tilt angle adjustment. This means that the footrests can be with pneumatic spring with clamp lever
perfectly adapted to any workplace situation. In the case of
Model 9455, this is achieved by means of a pneumatic spring, Non-slip rubber tread. Non-slip rubber tread.
making your footrest as convenient and easy to adjust as the Height adjustment range: 100 to 340 mm. Height adjustment range: 65 to 410 mm.
Tilt adjustment range: 8° to 25°.
Tilt adjustment range: 8° to 25°.
familiar modern workplace chair. Tread dimensions: 440 x 340 mm. Tread dimensions: 440 x 340 mm.
Design Order no. Design Order no.
Anthracite 9455 Anthracite 9450

58 59
