Page 155 - INTERSTUHL BIMOS

Production ESD area Laboratory Cleanroom Standing work

Labsit Seat width Seat depth BR height Seat height Ø 5 star base Weight
9123 / 9123 E 460 mm 420 mm 420 mm 450 – 650 mm 640 mm 7,5 kg
9121 / 9121 E 460 mm 420 mm 420 mm 520 – 770 mm 640 mm 10,0 kg
9125 / 9125 E 460 mm 420 mm 420 mm 560 – 810 mm 640 mm 10,0 kg
9127 / 9127 E 400 mm 400 mm – 450 – 650 mm 640 mm 7,0 kg
Nexxit Laboratory Seat width Seat depth BR height Seat height Ø 5 star base Weight
9030 460 mm 400 – 460 mm 530 mm 450 – 600 mm 680 mm 15,0 kg
9033 460 mm 400 – 460 mm 530 mm 450 – 600 mm 680 mm 15,0 kg
9031 460 mm 400 – 460 mm 530 mm 570 – 820 mm 680 mm 18,0 kg
Basic Laboratory Seat width Seat depth BR height Seat height Ø 5 star base Weight
9130 460 mm 440 mm 430 mm 470 – 610 mm 680 mm 14,0 kg
9131 460 mm 440 mm 430 mm 620 – 870 mm 680 mm 17,5 kg
9132 460 mm 440 mm 530 mm 470 – 610 mm 680 mm 16,5 kg
9133 460 mm 440 mm 430 mm 470 – 610 mm 680 mm 14,5 kg
9134 460 mm 440 mm 530 mm 470 – 610 mm 680 mm 17,0 kg
9135 460 mm 440 mm 530 mm 490 – 630 mm 680 mm 16,5 kg
9136 460 mm 440 mm 530 mm 640 – 890 mm 680 mm 20,0 kg
9137 460 mm 440 mm 530 mm 620 – 870 mm 680 mm 20,0 kg
9138 460 mm 440 mm 530 mm 490 – 630 mm 680 mm 17,0 kg
Cleanroom Plus Seat width Seat depth BR height Seat height Ø 5 star base Weight
9161 480 mm 470 mm 500 mm 440 – 565 mm 650 mm 14,5 kg
9181 480 mm 470 mm 380 mm 440 – 565 mm 650 mm 14,0 kg
9183 480 mm 470 mm 380 mm 630 – 890 mm 650 mm 17,0 kg
Cleanroom Basic Seat width Seat depth BR height Seat height Ø 5 star base Weight
9140 460 mm 440 mm 430 mm 470 – 610 mm 650 mm 14,5 kg
9141 460 mm 440 mm 430 mm 620 – 870 mm 650 mm 17,5 kg
9142 460 mm 440 mm 530 mm 470 – 610 mm 650 mm 17,0 kg
9143 460 mm 440 mm 530 mm 620 – 870 mm 650 mm 20,0 kg
9145 460 mm 440 mm 530 mm 490 – 630 mm 650 mm 17,0 kg
9146 460 mm 440 mm 530 mm 640 – 890 mm 650 mm 20,0 kg
Cleanroom stools Seat width Seat depth BR height Seat height Ø 5 star base Weight
9467R 400 mm 400 mm – 460 – 630 mm 650 mm 6,5 kg
9468R 400 mm 400 mm – 460 – 630 mm 650 mm 7,0 kg
9469R 400 mm 400 mm – 570 – 850 mm 650 mm 8,5 kg

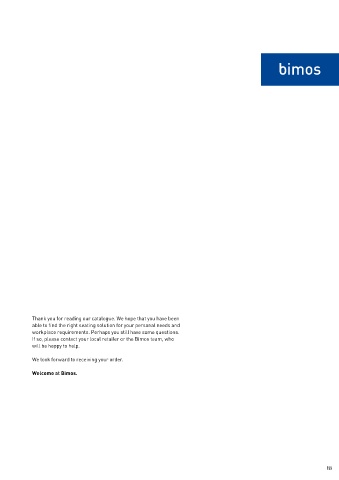

Fin Seat width Seat depth BR height Seat height Ø 5 star base Weight Thank you for reading our catalogue. We hope that you have been
9144 490 mm 145 mm – 620 – 850 mm 525 x 355 mm 9,0 kg able to find the right seating solution for your personal needs and
ESD Fin Seat width Seat depth BR height Seat height Ø 5 star base Weight workplace requirements. Perhaps you still have some questions.
9144E 490 mm 145 mm – 620 – 850 mm 525 x 355 mm 9,0 kg If so, please contact your local retailer or the Bimos team, who
Labster standing rest Seat width Seat depth BR height Seat height Ø 5 star base Weight will be happy to help.
9106 360 mm 380 mm – 650 – 850 mm 490 mm 7,0 kg
9106E 360 mm 380 mm – 650 – 850 mm 490 mm 7,0 kg We look forward to receiving your order.
Standing rest Seat width Seat depth BR height Seat height Ø 5 star base Weight
9452 370 mm 240 mm – 650 – 850 mm 420 x 460 mm 9,0 kg
9454 370 mm 240 mm – 650 – 850 mm 470 mm 10,0 kg Welcome at Bimos.
9456 370 mm 240 mm – 640 – 840 mm 460 x 440 mm 9,0 kg
ESD standing rest Seat width Seat depth BR height Seat height Ø 5 star base Weight
9454E 370 mm 240 mm – 650 – 850 mm 470 mm 10,0 kg
Flex / ESD Flex Seat width Seat depth BR height Seat height Ø 5 star base Weight
9408 / 9408 E 360 mm 380 mm – 450 – 650 mm 640 mm 10,0 kg
9409 / 9409 E 360 mm 380 mm – 510 – 780 mm 640 mm 11,0 kg
9419 / 9419 E 360 mm 380 mm – 510 – 780 mm 640 mm 13,0 kg

154 155
