Page 131 - INTERSTUHL BIMOS

Cleanroom Basic Cleanroom

Design and materials Mechanisms and functions (for precise details, see pages 16 – 17)

The base frame, which is made from die-cast aluminium, is brilliantly polished
and is supplied with conductive castors / glides for hard floors. The non-tear
synthetic leather cover, which is also conductive, has non-slip properties and
ensures a firm grip even when the user is wearing smooth cleanroom clothing.
or or

Contact backrest Contact backrest with seat Synchronous mechanism Seat height adjustment Backrest height
tilt adjustment with weight regulation adjustment

Options

Mushroom
glides (Clean-
room Plus 2)

Accessories (for precise details, see page 149)

Ring-shaped Multifunction Foot ring
armrest armrest

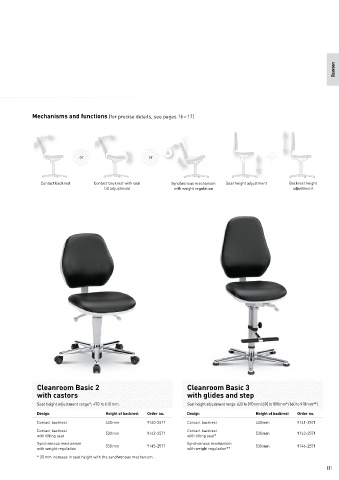

Cleanroom Basic 2 Cleanroom Basic 3
Upholstery fi nish with castors with glides and step
and colour options Seat height adjustment range*: 470 to 610 mm. Seat height adjustment range: 620 to 870 mm (630 to 890 mm* / 660 to 910 mm**).
Design Height of backrest Order no. Design Height of backrest Order no.
Finish Black
Contact backrest 430 mm 9140-2571 Contact backrest 430 mm 9141-2571
Skai ESD
synthetic leather Contact backrest 530 mm 9142-2571 Contact backrest 530 mm 9143-2571
with tilting seat with tilting seat*
Synchronous mechanism Synchronous mechanism
Order no. 2571 530 mm 9145-2571 530 mm 9146-2571
with weight regulation with weight regulation**
* 20 mm increase in seat height with the synchronous mechanism.
130 131
