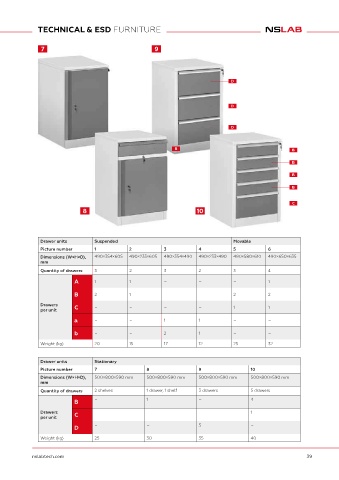

Page 39 - NSLAB Workstation catalogue

TECHNICAL & ESD FURNITURE TECHNICAL & ESD FURNITURE
DRAWER UNITS 7 9

SUSPENDED, MOVABLE AND STATIONARY D

DRAWER UNITS

D
Steel frame drawer units are designed for tools and components storage. Movable and
stationary drawer units can be also used as ad ditional workplaces. Steel frame drawer units
are equipped with central lock and either 550 mm telescoping drawers or shelves. Movable D
units have four rubber casters, two of which are with brakes. We also offer suspended drawer
units with reduced to 490 mm depth, which allow installing various additional equipment
under a tabletop. B B

Drawers’ inner dimensions for different types are: Reduced drawers:
А — standard 400×45×505 mm a — reduced 400×45×426 mm B
В — standard 400×100×505 mm b — reduced 400×100×426 mm B
C — standard 400×160×505 mm
D — standard 400×200×505 mm per drawer 30 kg B

1 2 3 C
8 10

a
A
A
B b Drawer units Suspended Movable
B
B b Picture number 1 2 3 4 5 6
Dimensions (W×H×D), 490×354×605 490×233×605 490×354×490 490×233×490 490×580×610 490×650×635
mm
Quantity of drawers 3 2 3 2 3 4
4 5 6 A 1 1 – – – 1

B 2 1 – – 2 2
A
A
a Drawers C – – – – 1 1
B per unit
b B
B a – – 1 1 – –
b – – 2 1 – –
C C
Weight (kg) 20 15 17 12 25 32

Drawer units Stationary
Picture number 7 8 9 10
Color Type 1 2 3 4 5 6 Dimensions (W×H×D), 500×800×590 mm 500×800×590 mm 500×800×590 mm 500×800×590 mm
mm
NS.16.27.7012.ESD NS.16.28.7012.ESD NS.16.29.7012.ESD NS.16.30.7012.ESD NS.16.31.7012.ESD NS.16.32.7012.ESD
NS.16.27.7012 NS.16.28.7012 NS.16.29.7012 NS.16.30.7012 NS.16.31.7012 NS.16.32.7012 Quantity of drawers 2 shelves 1 drawer, 1 shelf 3 drawers 5 drawers
NS.16.27.7035.ESD NS.16.28.7035.ESD NS.16.29.7035.ESD NS.16.30.7035.ESD NS.16.31.7035.ESD NS.16.32.7035.ESD B – 1 – 4
NS.16.27.7035 NS.16.28.7035 NS.16.29.7035 NS.16.30.7035 NS.16.31.7035 NS.16.32.7035
Drawers C – – – 1
per unit
Color Type 7 8 9 10
D – – 3 –
NS.16.35.00.ESD NS.16.36.00.ESD NS.16.33.ESD NS.16.34.ESD
NS.16.35.00 NS.16.36.00 NS.16.33 NS.16.34 Weight (kg) 25 30 35 40
