TECHNICAL & ESD FURNITURE TECHNICAL & ESD FURNITURE

The edges of ESD version worktops and shelves are painted in dark gray (RAL 7012).
Technical version worktops and shelves have edges painted in light gray (RAL 7035).
Other colors edges available on request.

1 2 3 4 5 6

7 7a
8
10b 10a
10
9
9a
9b
11a
11

1-6 each tabletop 200 kg 10 1147/1447/1747×100 mm 10 kg
7, 7a 1000-1850 mm 100 kg 300 10a 547/697/847×100 mm 10 kg
0
10b 2×(1147/1447/1747)×100 mm 10 kg

1
2 1200/1500/1800 mm 1200/1500/1800 mm 5 1200/1500/1800 mm

1860 mm

325 mm 5
4
3
2
1
490 mm

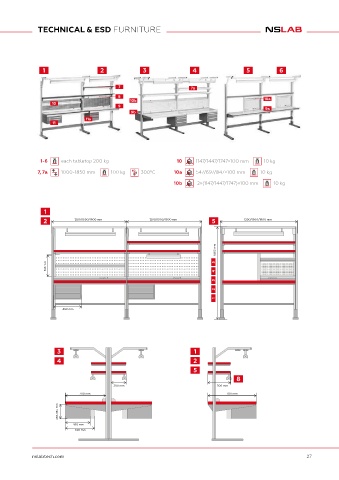

PT PLATINUM 3 1

SERIES WORKBENCHES 4 2 8
5

300 mm 300 mm
PLATINUM workbenches are distinguished by elegant design, advanced ergonomics and 700 mm 700 mm
convenient system of height adjustment. Several PLATINUM series workbenches can be placed
in an inseparable line where two tabletops are held by side lateral frames and share those in the 233-354 mm
middle. Standard PLATINUM workbenches are powder-coated in dark grey color (RAL 7012) for
lower steel modules and light grey color (RAL 7035) for tabletops and shelves. Possible tabletop 490 mm
height adjustment: 600–1300 mm. Possible lighting height adjustment: 1200–2000 mm. 605 mm
Maximum height of lighting ramp - 2090 mm. Tabletop thickness 25 mm.
