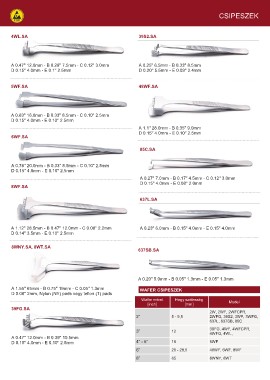

CSIPESZEK

4WL.SA 39S2.SA

A 0.47'' 12.0mm - B 0.29'' 7.5mm - C 0.12'' 3.0mm A 0.25'' 6.5mm - B 0.33'' 8.5mm
D 0.15'' 4.0mm - E 0.1'' 2.5mm D 0.20'' 5.5mm - E 0.09'' 2.4mm

5WF.SA 48WF.SA

A 0.63'' 16.0mm - B 0.33'' 8.5mm - C 0.10'' 2.5mm A 1.1'' 28.0mm - B 0.35'' 9.0mm
D 0.15'' 4.0mm - E 0.10'' 2.5mm D 0.15'' 4.0mm - E 0.10'' 2.5mm

6WF.SA 85C.SA

A 0.78'' 20.0mm - B 0.33'' 8.5mm - C 0.10'' 2.5mm A 0.27'' 7.0mm - B 0.17'' 4.5mm - C 0.12'' 3.0mm
D 0.15'' 4.0mm - E 0.10'' 2.5mm D 0.15'' 4.0mm - E 0.08'' 2.0mm
8WF.SA 637L.SA

A 1.12'' 28.5mm - B 0.47'' 12.0mm - C 0.08'' 2.2mm A 0.23'' 6.0mm - B 0.15'' 4.0mm - E 0.15'' 4.0mm
D 0.14'' 3.5mm - E 0.10'' 2.5mm 637SB.SA

8WNY.SA, 8WT.SA

A 0.20'' 5.0mm - B 0.05'' 1.3mm - E 0.05'' 1.3mm

A 1.55'' 65mm - B 0.75'' 19mm - C 0.05'' 1.3mm WAFER CSIPESZEK
D 0.08'' 2mm, Nylon (NY) pads vagy teflon (T) pads
39FG.SA Wafer méret Hegy szélesség Model
[inch] [mm]
A 0.47'' 12.0mm - B 0.39'' 10.5mm 2W, 2WF, 2WFCPR,
D 0.15'' 4.0mm - E 0.10'' 2.5mm 2” 5 - 9,5 2WFG, 39S2, 3WF, 3WFG,
637L, 637SB, 85C
3” 12
4” - 5” 16 39FG, 4WF, 4WFCPR,
6” 20 - 28,5 4WFG, 4WL,
8” 65
5WF

48WF, 6WF, 8WF

8WNY, 8WT
