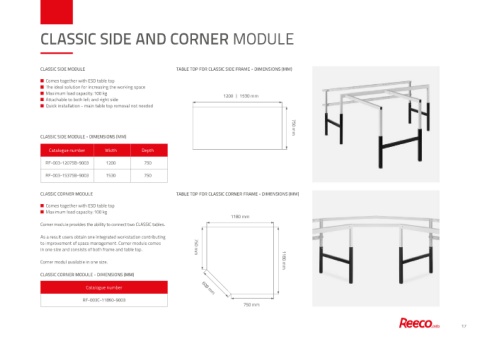

CLASSIC SIDE AND CORNER MODULE

CLASSIC SIDE MODULE TABLE TOP FOR CLASSIC SIDE FRAME - DIMENSIONS (MM)

Comes together with ESD table top
The ideal solution for increasing the working space
Maximum load capacity: 100 kg 1200 | 1530 mm
Attachable to both left and right side
Quick installation - main table top removal not needed

CLASSIC SIDE MODULE - DIMENSIONS (MM) 750 mm

Catalogue number Width Depth

RF-003-12075B-9003 1200 750

RF-003-15375B-9003 1530 750

CLASSIC CORNER MODULE TABLE TOP FOR CLASSIC CORNER FRAME - DIMENSIONS (MM)
Comes together with ESD table top
Maximum load capacity: 100 kg
1180 mm
Corner module provides the ability to connect two CLASSIC tables.

As a result users obtain one integrated workstation contributing
to improvement of space management. Corner module comes
in one size and consists of both frame and table top. 750 mm

Corner modul available in one size. 1180 mm

CLASSIC CORNER MODULE - DIMENSIONS (MM)
Catalogue number 608 mm

RF-003C-11860-9003
750 mm
